Bertazzoni / Hob / 75cm
A 75cm Heritage Series gas hob with 5 burners, knob controls and cast iron pan supports. A central wok burner provides up to 4kW for higher-heat cooking. Finish-specific details are listed below.
User guide & installation PDF here.
75cm5 cooking zonesGas hob
Overview
| Feature | Detail |
|---|---|
| Model | P755CHERNE / P755CHERAX |
| Series | Heritage |
| Width | 75 cm |
| Hob type | Gas |
| Cooking zones | 5 |
| Fuel | Gas |

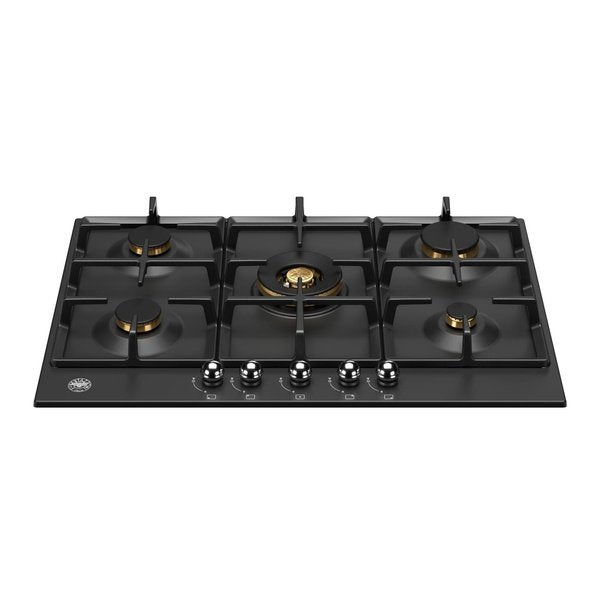

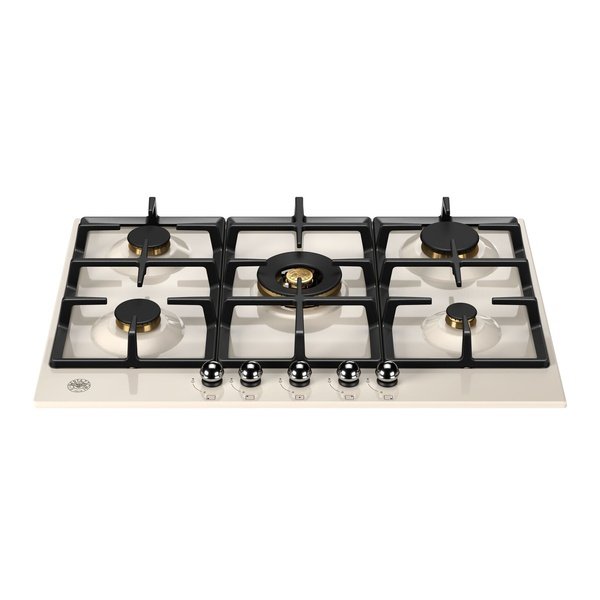

| Surface / finish | Nero Matt: enamelled steel; Avorio / Stainless: Ivory enamel with stainless steel trim |
| Absorbed electrical power | 1 W |
Controls & Features
| Feature | Detail |
|---|---|
| Control type | knobs |
| Control knobs | metal |
| Burners and caps | brass |
| Pan supports | cast iron |
| Flame failure device | Yes |
| Ignition | Yes |
Technical Specifications
| Feature | Detail |
|---|---|
| Voltage and frequency | 220/240 V - 50/60 Hz - 1 A |
| Absorbed electrical power | 1 W |
The electrical load is separate from the gas burner outputs.
